Flight ultraviolet laser marking machine, fully automatic industrial equipment

Brand Name : DH

Model Number : DH3003

Certification : CE/ISO9001

Place of Origin : Xi'an City, Shaanxi Province, China

Payment Terms : T/T, Western Union

MOQ : 5

Product Name : UV Laser Marking Machine

Laser type : UV laser

Laser brand : Jept

Output Power : 3W/5W/10W optional

Maximum linear marking speed : 12000mm/S

Minimum line width : 0.1mm

Production line speed : up to 120 m/min

character height : 0.2-100mm

focal length : 135mm (standard configuration)

wavelength : 355nm, can meet the working requirement of no less than 30,000 hours

Marking range : Standard 110 * 110mm, customizable according to needs

Number of marking lines : Arbitrarily set the number of lines within the effective marking range

Font type : Multiple options including single line font, double line font, dot matrix font, etc

Marking content : Text, graphics, barcodes, QR codes, dynamic serial numbers, real-time clocks, TXT files RS232 communication data, etc

Screen size : 10 inch full-color touch screen

Contact Now

Donghui UV Laser Marking Machine Fully Automatic Flight UV Laser Marking Machine

UV Laser Marking Machine

Describe

Flight ultraviolet laser marking machine, fully automatic industrial equipment

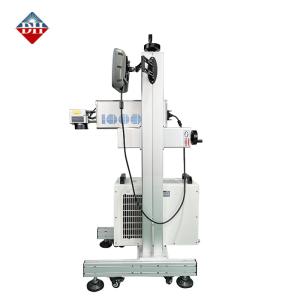

UV laser marking machine, consisting of a 10.2-inch display screen, laser, water tank, all aluminum three-dimensional bracket, moving roller, fixed base, etc. Using consumables free, free of cleaning and maintenance, engraving processing is not possible, fast, fully automated, printing results are clear and beautiful, factory direct delivery, support customization. Suitable for a wide range of industries, including the food industry, pharmaceutical industry, building materials industry, etc. There are multiple application methods that can be used in conjunction with production lines. A single device is sufficient, with automatic sensing and coding; Can be used in conjunction with high-speed filling production lines, and can be used in conjunction with various packaging machines, such as film rolling packaging machines, box filling machines, labeling machines, and box sealing machines; Can be used in conjunction with a pagination machine, for flat products such as labels, bags, boxes, cards, etc., to quickly paginate and label; It can be used in conjunction with a conveyor, whether it is flat or with curved products installed; Can be used at designated points, with marking at designated points and a foot switch for use.

Product features

Application of

UV laser

Application of UV laser:The mainly apply to finely processed industry:

Marking of outer package for cosmetic, medical, food, sort of polymer

material High-precision engraved for flexiable PCB plate,LCD glass,

coated metal,rubber,electroniccomponent, gift,communication equipment,

building materials.
UV laser source
Integration design for whole laser generator,combination of optical path and power controller system,compact structure and integration easier
Adopt laser diode as pump source of laser generator,can continuously trouble-free running up to 30,000 hours
Optical path and galvanometer system Galvanometersystem:Adopted digital galvanometer system with high-speed,high- precision to make sure high-effeciency running,enhance anti-interference signal ability

Equipment parameters

Donghui DH3003 UV Laser Marking Machine
Laser type UV laser
wavelength 355nm, can meet the working requirement of no less than 30,000 hours
Output Power 3W/5W/10W optional
focal length 135mm (standard configuration)
Maximum linear marking speed 12000mm/S
Laser brand Jept
Marking parameters
Marking range Standard 110 * 110mm, customizable according to needs
Print Rows Arbitrarily set the number of lines within the effective marking range
Minimum line width 0.1mm
Production line speed up to 120 m/min
character height 0.2-100mm
font Multiple options including single line font, double line font, dot matrix font, etc
Marking content Text, graphics, barcodes, QR codes, dynamic serial numbers, real-time clocks, TXT files RS232 communication data, etc
Operation interface
monitor 10-inch industrial touch screen
operating language Chinese, English (other languages can be supported)
operating system Donghui
input device Manual touch screen, U disk, network port
Environmental requirements
Protection level

The overall protection level of the controller can reach IP55,

and the surface can reach IP65 protection level. Waterable shower
cool down water cooling
ambient temperature 10-40℃
humidity Relative humidity 10%-90%RH non-condensing
Power supply 220V, 1KVA
Printing effect of UV laser marking machine

Flight ultraviolet laser marking machine, fully automatic industrial equipment
