Fiber Flying Laser Marking Machine Date Carving On The Bottom Of The Can

Brand Name : DH

Model Number : DH3020

Certification : CE/ISO9001

Place of Origin : Xi'an City, Shaanxi Province, China

Payment Terms : T/T, Western Union

MOQ : 5

Name : Fiber Flying Laser Marking Machine

Machine material : Body: Sandblasted and oxidized all-aluminum structure

laser : Fiber laser Th generator has a service life of more than 100,000 hours

Laser wavelength : 1064nm

Actual output power : ≥21W ≥32W ≥52W

Marking speed : ≤12000mm/s

master control : 10.2-inch touch controller

cooling system : Normal temperature air cooling

focusing lens : Focal length 170mm

Minimum line width : 0.0012mm

Repeatability : 0.003mm

Marking range : 110mm×110mm (optional)

Targeting : Red light focus

Number of lines of characters to be engraved : Any row within the marking range

Th production line speed : 0~120m/min (depending on the material)

Contact Now

Fiber Flying Laser Marking Machine,Date carving on the bottom of the can

Keyword

1. Fiber flying laser marking machine
2. Pipe laser marking machine
3. Metal laser marking machine
4. Assembly line laser marking machine
5. Optical fiber online laser marking machine
6. Fiber laser marking machine

Features
Our company's fiber laser marking machine mainly uses high-quality lasers, German high-performance galvanometer scanning systems, and control software developed by our company. It has fast speed, stable performance, good laser mode, long service life, and can work continuously for up to 100,000 hours. The electro-optical conversion efficiency is high and the power consumption of the whole machine is small. The system is simple to operate and flexible and convenient to change. Full Chinese interface, compatible with files output by AUTOCAD, CORELDRAW, PHOTOSHOP, CAXA and other software, can be marked with barcodes, QR codes, graphic text, etc., supports PLT, PCX, DXF, BMP and other file formats, directly use SHX , TTF font library. The system can automatically code and print serial numbers, batch numbers, dates, etc. Applicable to all metal materials and PE materials.

Specification

Project	Product parameter table	F-20W	F-30W	F-50W
Overall machine characteristics	Machine material	Body: Sandblasted and oxidized all-aluminum structure
	laser	Fiber laser Th generator has a service life of more than 100,000 hours
	Laser wavelength	1064nm
	Actual output power	≥21W	≥32W	≥52W
	Marking speed	≤12000mm/s
	master control	10.2-inch touch controller
	cooling system	Normal temperature air cooling
Coding parameters	focusing lens	Focal length 170mm
	Minimum line width	0.0012mm
	Repeatability	0.003mm
	Marking range	110mm×110mm (optional)
	Targeting	Red light focus
	Number of lines of characters to be engraved	Any row within the marking range
	Th production line speed	0~120m/min (depending on the material)
Software introduction	multi-lingual	English, French, Spanish, German, Chinese, Russian, Arabic, etc.
	Administrative permissions	Multi-user management permissions
	operating system	Linux system
	Coding mode	Three printing modes: static, simulation and encoder
	reserved signal	Start printing, printing status, printing completed, fault alarm
	Missed dose monitoring	Provides overspeed alarm function due to false triggering due to material reflection
	go to intersection	Automatically remove intersection points and avoid key points of intersection
	Coding software	Can realize single and double machine code sending
Support type	font	Chinese, English, digital, traditional and other standard fonts
	file format	BMP/DXF/HPGL/JPEG/PLT
	barcode	CODE39, CODE128, CODE126, QR, Zhenzhi code (optional)
Machine parameter	power supply	220V/50HZ
	power consumption	800W
environment	Require	External temperature 0℃-45℃; Humidity ≤95; Non-condensing; No vibration

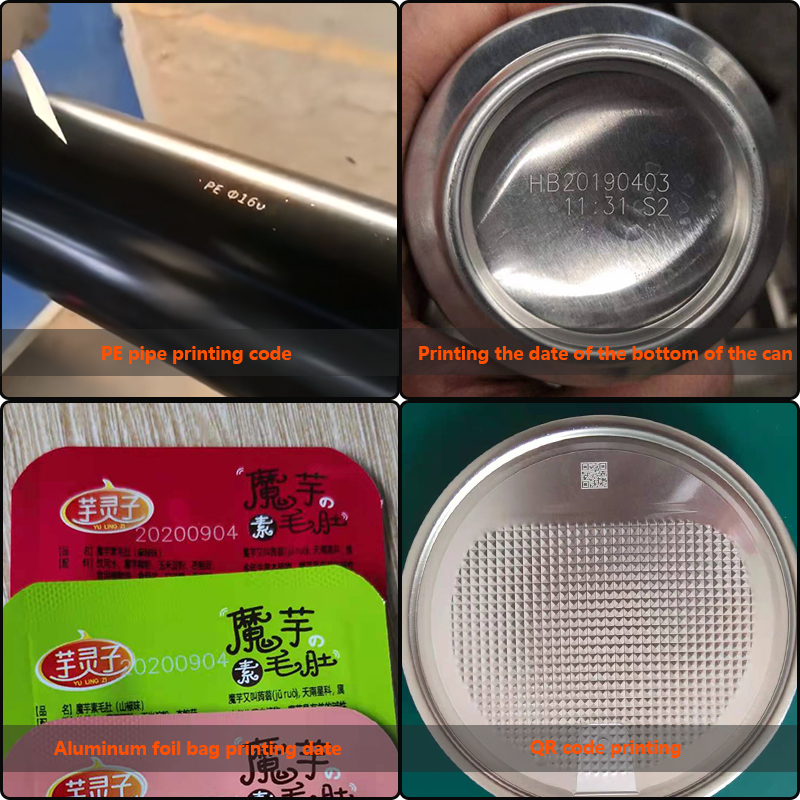

Printing effect
